GD-S450 Paper Slitting Machine

Paper Slitting machine

GD-S450 paper stlitting machine is used to slit big width paper roll ( Raw materil) into smaller and ruquired width paper stripe. Then rewinding paper stripe into smaller width paper rolls, which could be used by paper straw making machine.

Download PDF
Online Inquiry Contact us

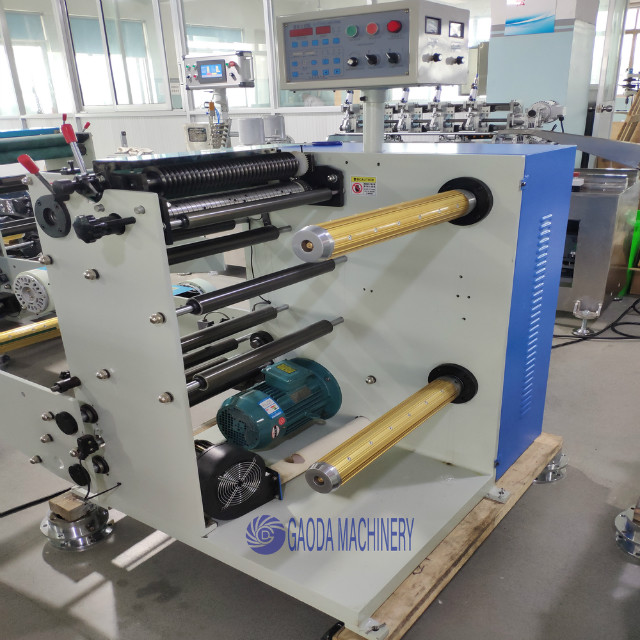

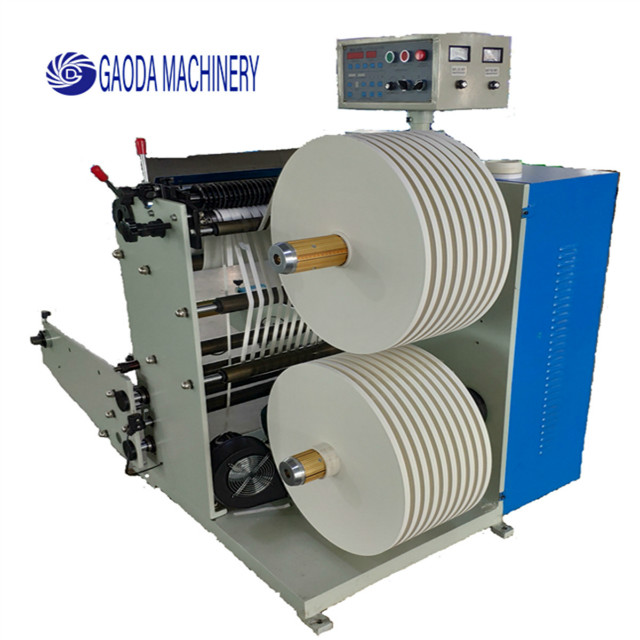

GD-S450 Paper Slitting and Rewinding Machine

GD-S450 paper stlitting machine is used to slit big width paper roll ( Raw materil) into smaller and ruquired width paper stripe. Then rewinding paper stripe into smaller width paper rolls, which could be used by paper straw making machine.


Machine Specification Parameter

Max Feeding Width

450MM

Max Unwinding Diameter

950MM

Max rewinding diameter

550MM

Automatic uploading cylinder

100/100  2 pcs

Speed

0-120M/MIN

Slitting knife set

33 Pairs

Min slitting width

13.7MM

Slitting precision

±0.1MM

Motor

1.5KW       Shanghai Lichao

Main part power

 2KW

Weight

 880KG

Dimension

 1700*1200*1380MM

Frequency changer

   4KW      Shenzheng  Kewo

Unwinding shaft

1 pcs, Outside diameter 76mm

(Zhejiang Kaiming)

Unwinding shaft magnetic tension control mechanism

1 set, 5kG, magnetic brakes

(Zhejiang Huaqiang)

Correction perform

Tracking the substrate by the photoelectric eye

(Wenzhou Ruiyu)

Spread roller

9 pcs

Hard surface treatment prevents scratch material

(Zhejiang Baixiao)

Traction roller

1 pcs            (Ruian Changsheng)

Pressure roller

1 pcs            (Ruian Changsheng)

Optical sensor

2 pcs            (Ruiyu)

Correction perform motor

Yingtong

Meter counting mechanism

1set                 (Zhejiang Zhongxing

Rewinding shaft

2 pcs, 76mm, Upper and down rewinding

(Zhejiang Huaqiang)

Rewinding shaft magnetic tension control mechanism

5KG, 2 sets          (Zhejiang Huaqiang)

Waste paper excluding mechanism

Fan 1 set

Button

Scheider

 Others

Tools box and Introduction book

Details Picture

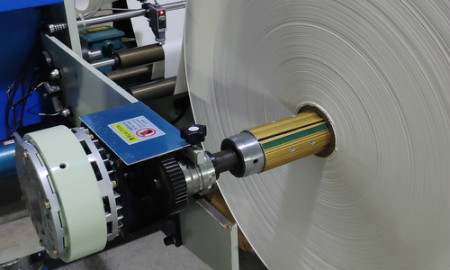

Unwinding Mechanism: Buy adopt  magnetic powder brake.

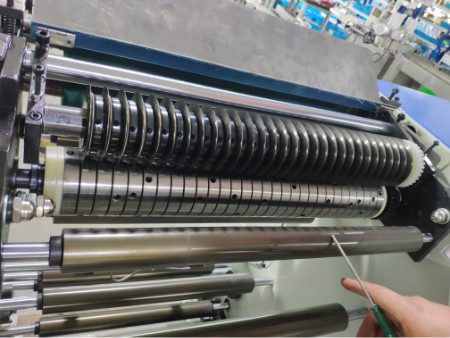

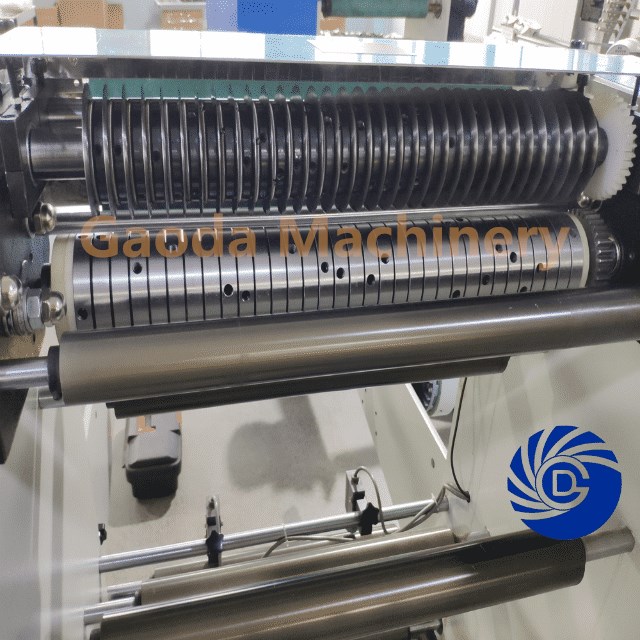

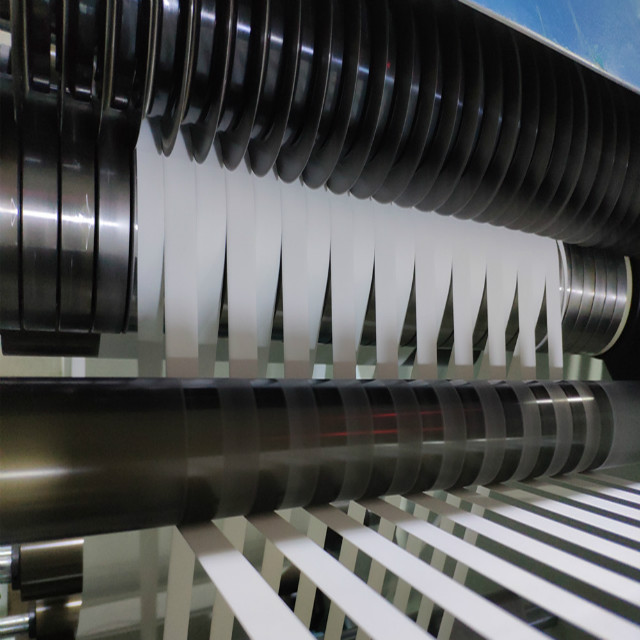

Slitting Knife Set

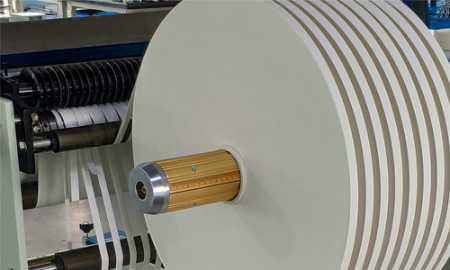

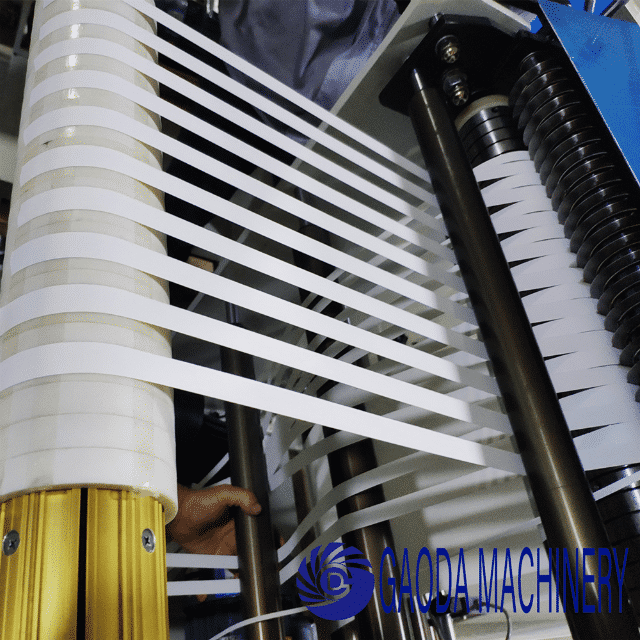

Rewinding Machanism
