Single straw packing machine are used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
GD-P300 series are used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
Characteristics:
1) Having two colors printing device can be chosen.
2) With automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm.
3) Printing, feeding, and packing can complete in one processing.
4) Packing straw length is adjustable within a certain range.
4) Packing straw length is adjustable within a certain range.
|
Model number |
GD-P300 |
|
Delivery time |
30 working days |
|
Payment |
Pay 30% by T/T as Advance, Pay the Balance Before Shipment |
|
Price(FOB Ningbo) |
With color printing unit: Without color printing unit: |
|
Guarantee |
ONE YEAR Expect quick-wear parts |
Specification Parameter
|
Model |
GD-P300 |
GD-P300-P1/2 |
|
Drink Straw Diameter(mm) |
5(±1), 10(±2) |
|
|
Straw Length(mm) |
100-200(±20) By adjust the sealing and cutting mould, printing cylinder |
|
|
Packing Model |
Paper type: wrap paper Sealing type: 3 side sealing Paper width: 25-30mm |
|
|
Production Speed |
With printing：300pcs/min Without printing＞400pcs/min |
|
|
Printing |
Non |
Single/Double Colour |
|
Driving motor |
1.1kw,with inverter controlled |
|
|
Paper Unwinding Frame |
1SET Tension adjust：Mechanical tension device, adjusted by manual Wrap paper roller core size：3inch，4.7inch |
|
|
Straw feeding hopper |
Material :Stainless steel frame， Plexiglass: Adjustable to match straw length Straw down device：synchronous motor and swing arm Feeding model：by chain feeding |
|
|
Printing Unit |
/ |
Single/Double Color Power transmission ：By chain Between printing unit: By gear Traction unit：1sets, rubber roller and chrome plated roller Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller Dry fan：1SET , with heating function colour register：By manual |
|
Sealing and cutting unit |
Lengthways sealing：Sealing roller-on couple，pressure adjusted by manual Horizontal：Sealing roller-on couple，pressure adjusted by manual, with cutting knife-one couple Material：mould steel With manual adjust wheel |
|
|

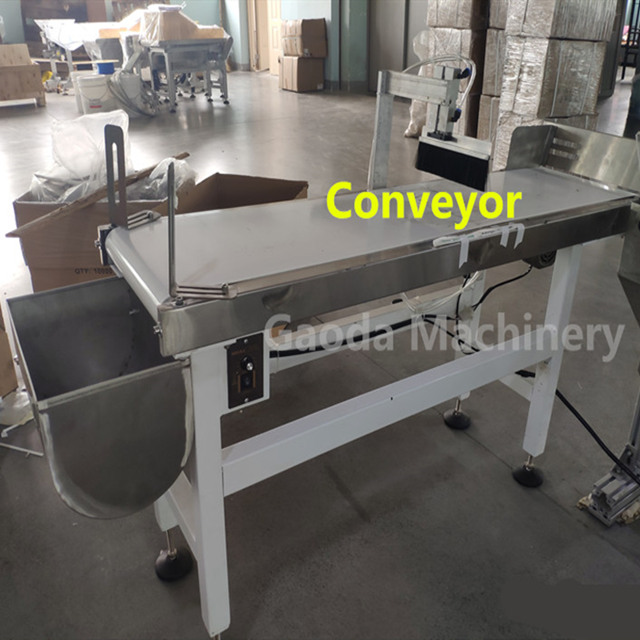

Conveyor Belt |
1 set， Synchronous reduction motor+ controller |
|
|
Controller |
Counter and buzzers：1set Inverter： 1.1KW, Schneider Temperature controller：1set Speed meter：1set |
|
|
Total Power (Kw) |
1.5 (220V) |
|
|
Over size (mm) |
1900×1000×1600 (L×W×H) |
|
|
Weight (Kg) |
400 |
|
Printing and drying unit：
Sealing and cutting unit
