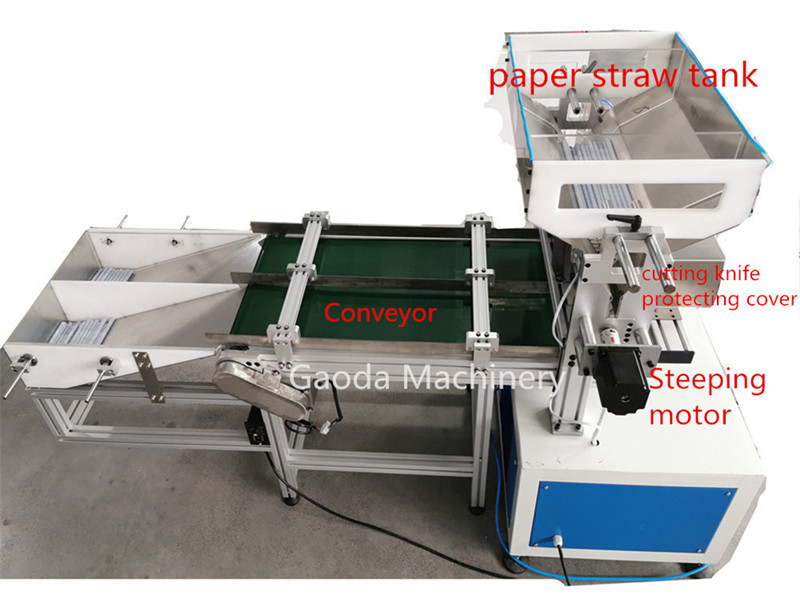

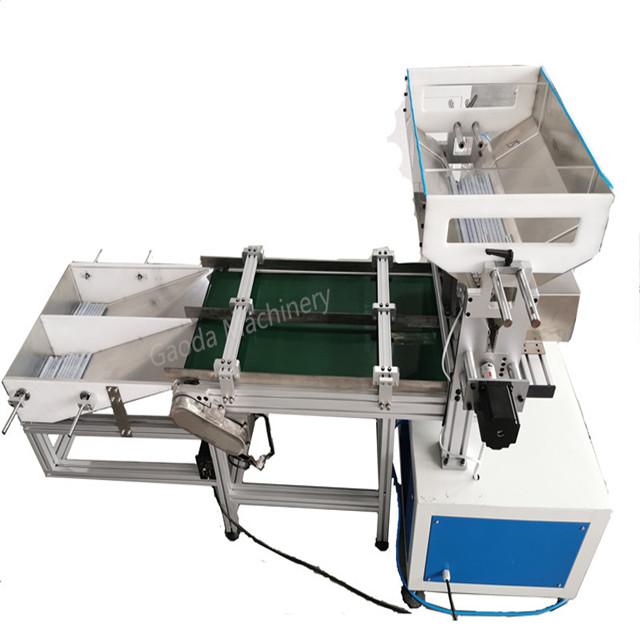

GD-B200 Paper Straw Bevel Cutting Machine

Bevel cutting machine

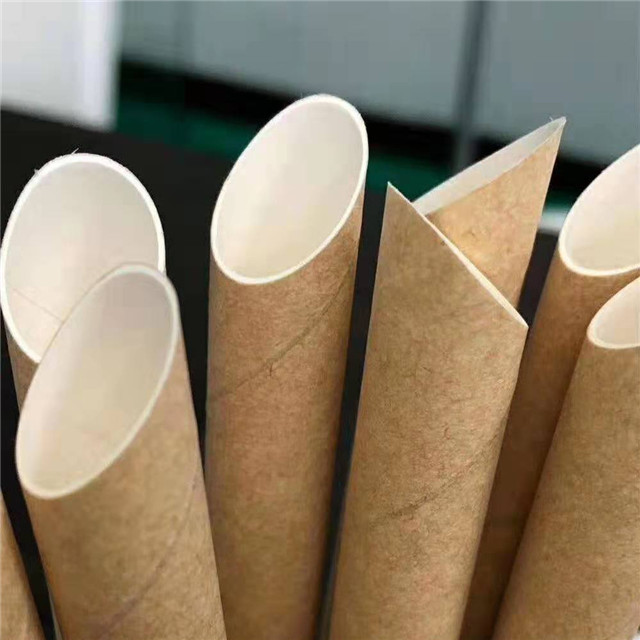

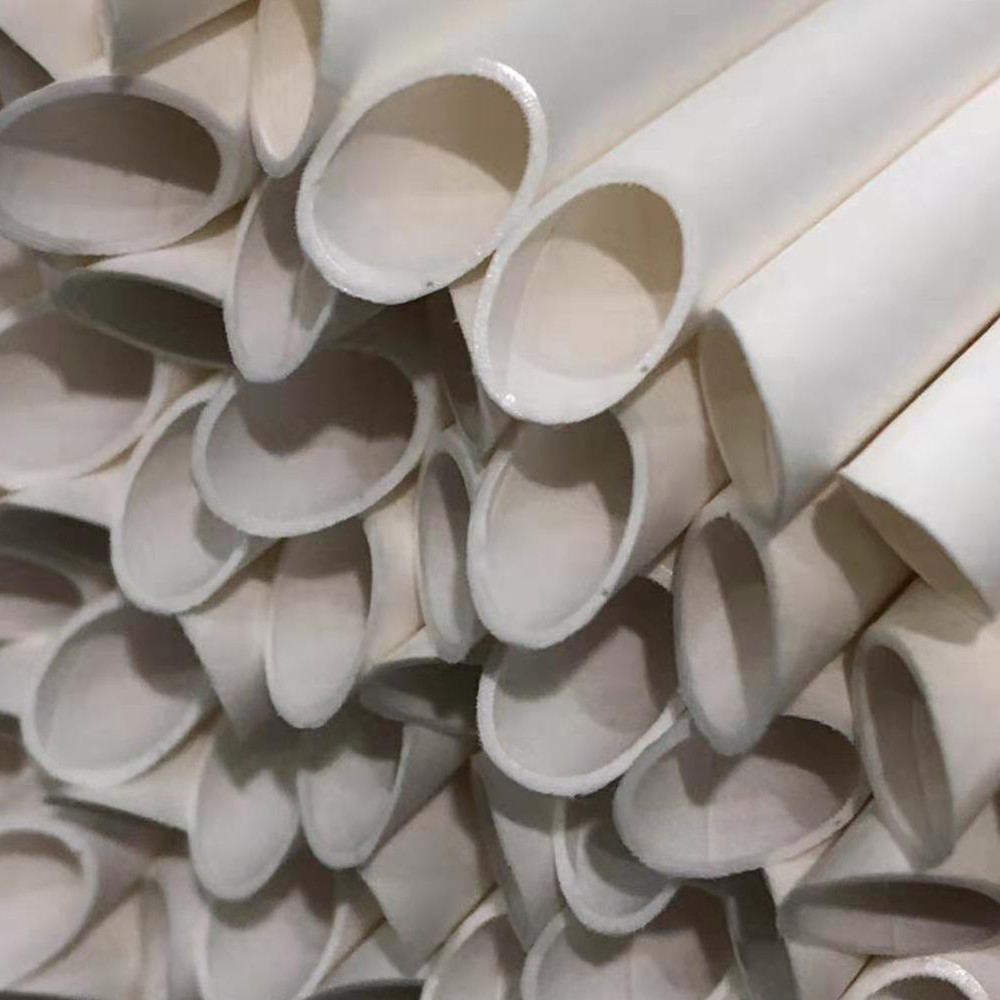

45 degree paper straw bevel cutting machine is used for cutting straight paper straw into bevel incision.
Best bevel angle is 45 degree, but also could adjust to other angles.

Online Inquiry Contact us

GD-B200 Paper Straw Bevel Cutting Machine

Product Application

Paper straw bevel cutting machine is used to cutting straight paper straw into bevel incision.

Best bevel angle is 45 degree, but also could adjust to other angles.


Main Features

1. High efficiency: 200~220pieces per minute cutting capacity.

2. Cutting knife replacement period: 6 month (only twice one year)

3. Perfect and smooth cutting section (no any blemish around edge)

4. Low energy consumption: total power only 0.8KW

5. Minimum working pressure of air compressor: 4 MPa.

6. Easy to operate for new workers

7. Safety protection at cutting device. English or Chinese version display panel


Specification Parameter

Model

Voltage

Power

Dimension

Speed

Weight

GD-Bevel

220V/ 1 /50Hz

0.8-1.2KW

1.98*0.85*1.2m

200 pcs/min

100Kg

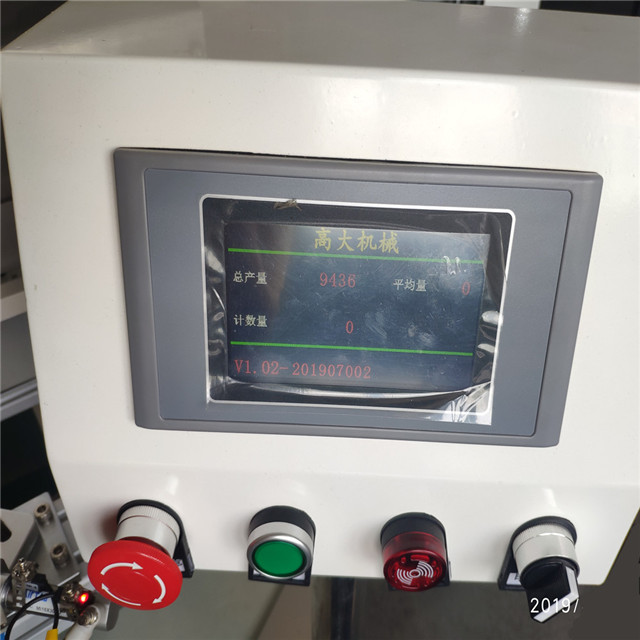

Control screen

WUXI CHENGKONG

Cutting motor

ZHENGKE-ZYTD

Switch

CHNT

Voltage transformer

YUNWEI
