The company is located in Wenzhou, since 1998 we introduced the advanced technology from German, has more than 20 years of factory history. We specialize in producing all kinds of plastic zippers and related machines.We have dozens of new high-output plastic production lines, thousands of molds.
1. Adopted man-machine control interface, touch screen parameters setting, easy operating.
2. Aluminium paper reeling stand,sitting rolls are easily placed into reel stand
3. Automatic and high efficiency. 150-225 pcs straws /min.
FEATURE:
1. Adopted man-machine control interface, touch screen parameters setting, easy
operating.
2. Aluminium paper reeling stand,sitting rolls are easily placed into reel
stand
3. Automatic and high efficiency. 150-225 pcs straws /min.
4. Winding by belt and tension device adjusted by handle wheel.
5. Select and use famous brand suppliers for motor and electrical
equipment.
6. Thermal/heat treatment frame to remove internal stressfor longer
service life.
7. Make 4-7mm diameter paper straws, with 7 blades

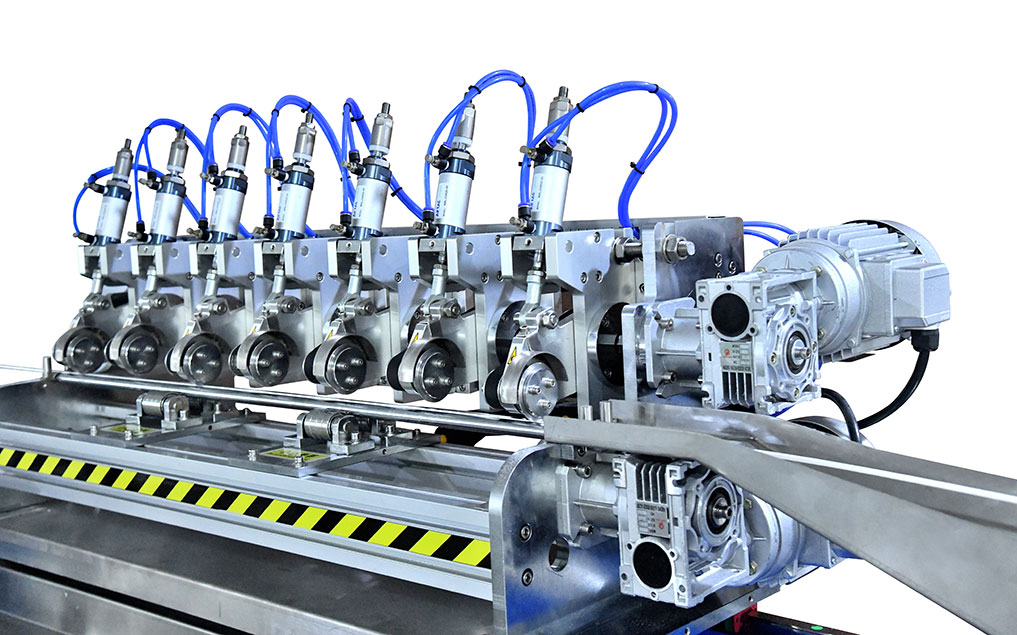

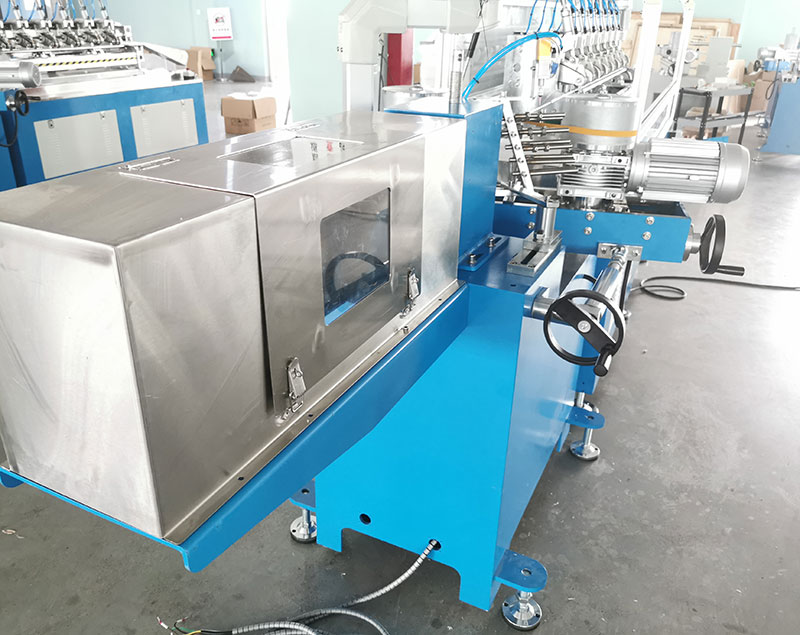

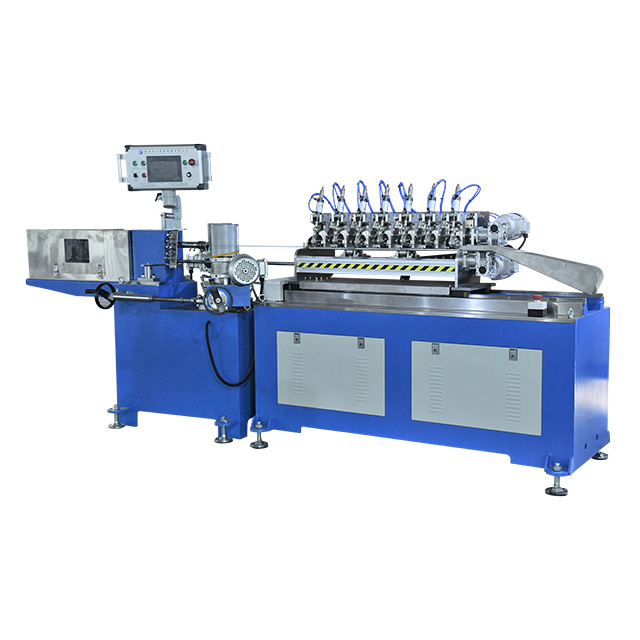

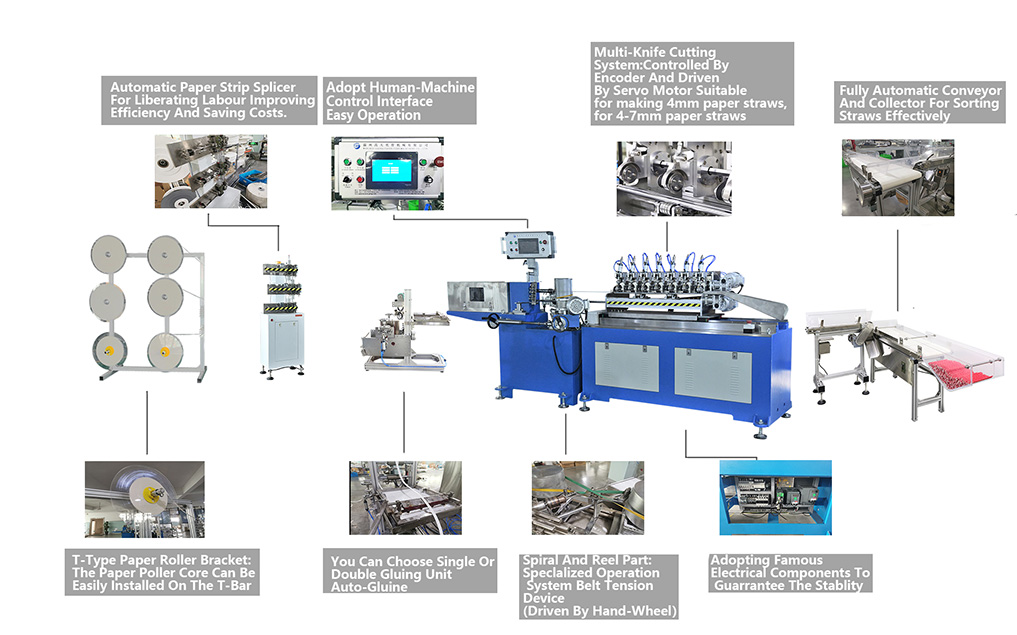

Detailed Images:
Detailed Images:
主要技术参数Technical parameter |
|
Model |
GDZGJ-6 |
Power Suooly |
380V/3phase/50HZ |
Cutting System |
7 blades |
Speed |
faster model |
Mold |
3 sets mold |
External Diameter |
6-12mm |
Interface/Inverter |
Schneider |
Electric machinery |
Dedong Shanghai |
Pneumatic components |
Air TAC |
Main Part Dimension |
5650×1600×1750mm |
Overall Dimension |
8300×6000×1950mm |
Weight |
1400kg |
If you have any enquiry about quotation or cooperation,please feel free to email us at gdxs03@chinagaoda.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
