Paper Straw Machine

The company is located in Wenzhou, since 1998 we introduced the advanced technology from German, has more than 20 years of factory history. We specialize in producing all kinds of plastic zippers and related machines.We have dozens of new high-output plastic production lines, thousands of molds.

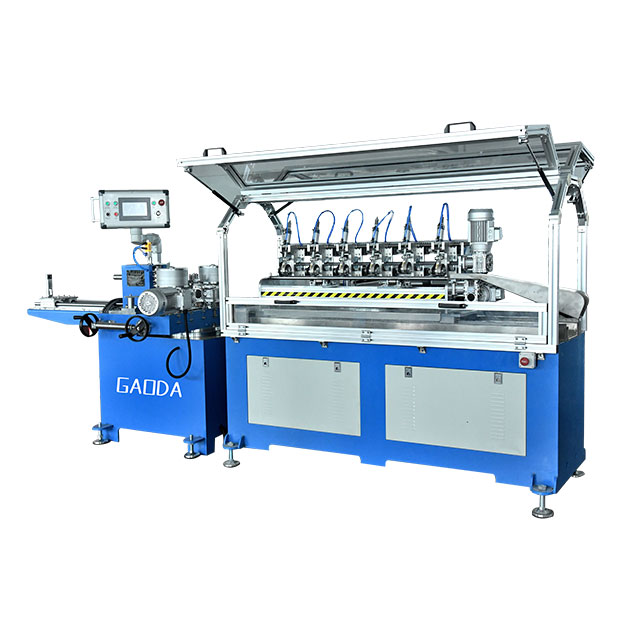

High Speed Paper Straw Making Machine

Paper Straw Machine

1. Adopted man-machine control interface, touch screen parameters setting, easy operating.
2. Aluminium paper reeling stand,sitting rolls are easily placed into reel stand
3. Automatic and high efficiency. 150-225 pcs straws /min.

Online Inquiry Contact us

FEATURE:


1. Adopted man-machine control interface, touch screen parameters setting, easy operating.
2. Aluminium paper reeling stand,sitting rolls are easily placed into reel stand
3. Automatic and high efficiency. 150-225 pcs straws /min.
4. Winding by belt and tension device adjusted by handle wheel.
5. Select and use famous brand suppliers for motor and electrical equipment.
6. Thermal/heat treatment frame to remove internal stressfor longer service life.

7.Spiral winding part,specialized operation system,belt tension device

8.The dust coverreduces the running sound of the machine effectively

Blocks the external dust and protects the operator's safety

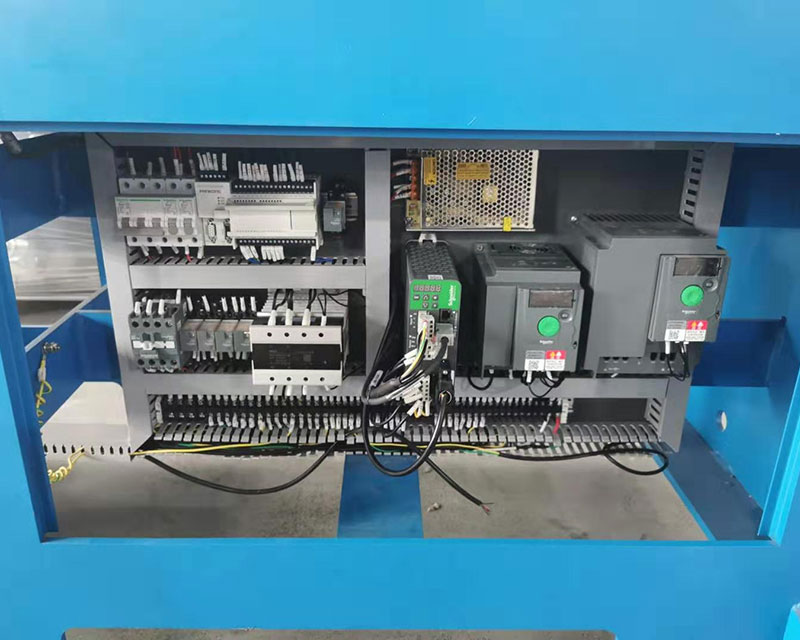

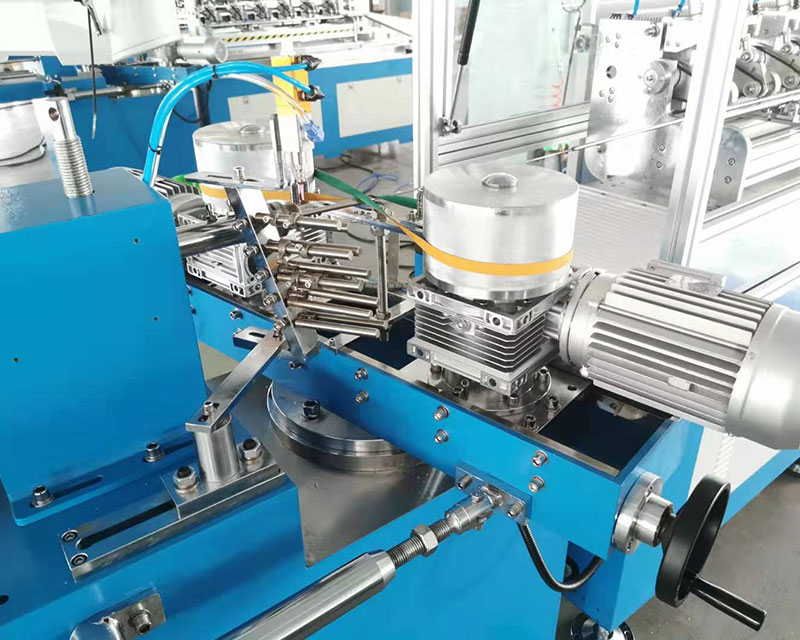

Detailed Images:


Detailed Images:


主要技术参数Technical parameter

Model

GDZGJ-6

Power Suooly

380V/3phase/50HZ

Cutting System


7 blades

Speed


faster model


 Mold


3 sets mold


External Diameter

4-7mm


 Interface/Inverter


Schneider


Electric machinery


Dedong Shanghai


 Pneumatic components


Air TAC


 Main Part Dimension

5650×1600×1750mm


Overall Dimension

8300×6000×1950mm


Weight

1400kg
